Plate Magnets

Plate magnets are used to remove scrap metal from items such as grains, glass, chemicals, plastics, minerals and foodstuffs.  Plate magnets are primarily used in ducts and chutes or suspended over conveyor belts. Plate magnets prevent damage to equipment and product contamination by effectively removing tramp iron from free-flowing materials under pressure. They provide permanent magnetic strength and are easily installed to fit most granulators in use today. Five standard plate magnet models are available with widths starting at six inches. Price quotations are available on request, as are optional features.

Call (800) 799-4408 for pricing and questions!

SKU: PM Category:
  • Plate Magnets Utilize All Stainless Steel Construction for resistance to a corrosive atmosphere and for materials often required for the food-handling and processing industries.
  • Hinge Mounting for installation in chutes and ducts
  • Plate Magnets also available with Eye-Bolts for Suspension Mounting
  • Easy cleaning with swing-down plate magnet
  • More positive removal of tramp iron with special barriers and steps
  • Liquid-tight construction prevents moisture from entering plate magnet unit
  • Special mounting holes, either tapped holes in back face or through holes in flanges for stationary installation (flange will be increased by ½” to allow for holes)

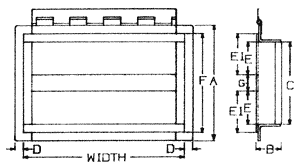

Plate Magnet Drawing

PLATE-MAGNET-BROCHURE-PL-001

Click the button below to convert inches to mm:
Inch to MM Conversion Calculator

Plate Magnet Applications:

  • Plastics Processing
  • Agriculture
  • Food Processing
  • Powder Bulk Handling/Processing
  • Animal Feed
  • Aggregate Processing
  • Wood Waste
Model Effective
Product
Depth
Dimension in Inches
A B C D E F G
PM 150 2 7 1-1/2 5 1/2 2 6 1
PM 250 3 9 1-1/2 7 1/2 3 8 1
PM 350 4 9 2-5/8 7 1/2 3 8 1
PM 450 5 11-1/2 3-13/16 9-1/2 1/2 4 10-1/2 1-1/2
PM 650 6-7 16-7/8 6-5/8 14-1/2 3/4 *6-3/8 15-1/4 2-1/2
Width according to customer specifications.
*E1 – On 650 Model only, pole piece extends to flange
