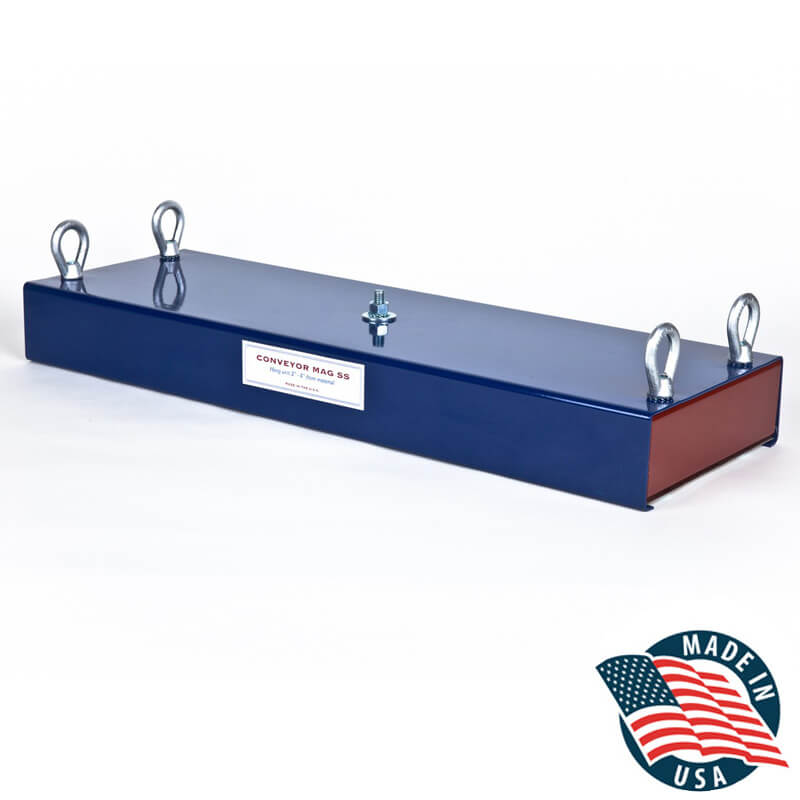

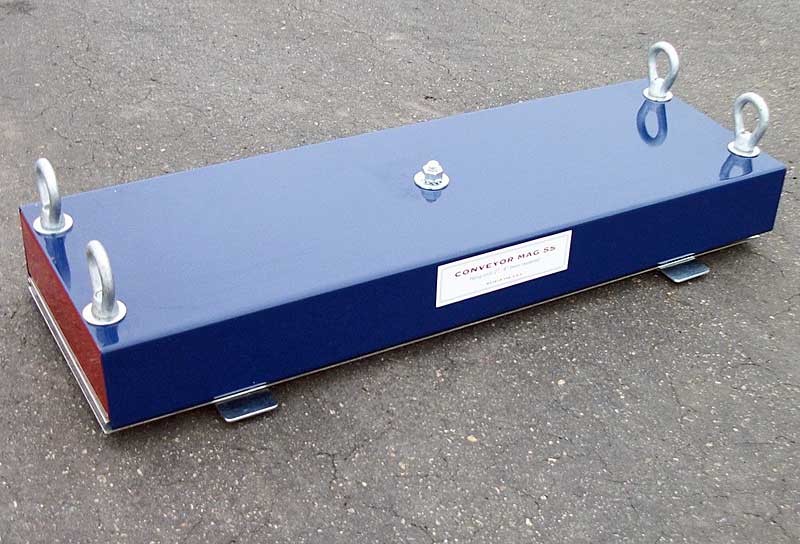

Type CM-3 Super Strength Conveyor Magnet

$1,125.00$1,999.00

This is the ultimate economical “insurance policy”! The Shields Type CM3 Super-Strength Conveyor Magnet is designed to remove larger ferrous metal such as bucket teeth, drill bits, and rebar from high-volume industrial flow. The Type CM3 Super Strength Conveyor Magnet is a “no-maintenance” item and carries a lifetime guarantee on magnetic strength! We Are the Manufacturer and Use Only Grade 8 Permanent Magnets!

Conveyor Magnet Available in the following widths: 18″ • 24″ • 30″ • 36″ • 48″

Shields Guarantees

PRICES ARE DELIVERED.

Description

Clients Who Use Our Conveyor Magnets

CM3 Conveyor Magnet Specifications

Size Magnetic Surface Area
Sq. Inches
Depth in
Inches
Width in
Inches
Height in
Inches
Weight (lbs) Lifting
Power*
CM3-18 180 10 18 3 67 300 Lbs.
CM3-24 240 10 24 3 90 400 Lbs
CM3-30 300 10 30 3 112 500 Lbs.
CM3-36 360 10 36 3 135 600 Lbs.
CM3-48 480 10 48 3 180 800 Lbs.

*Lifting Power Measured using a Flat Steel Plate

Benefits

  • Industrial-strength conveyor magnet lifts items up to 3″- 4″ below unit
  • We use only Grade 8 Permanent Magnets, the strongest permanent magnets available in all of our magnetic products.

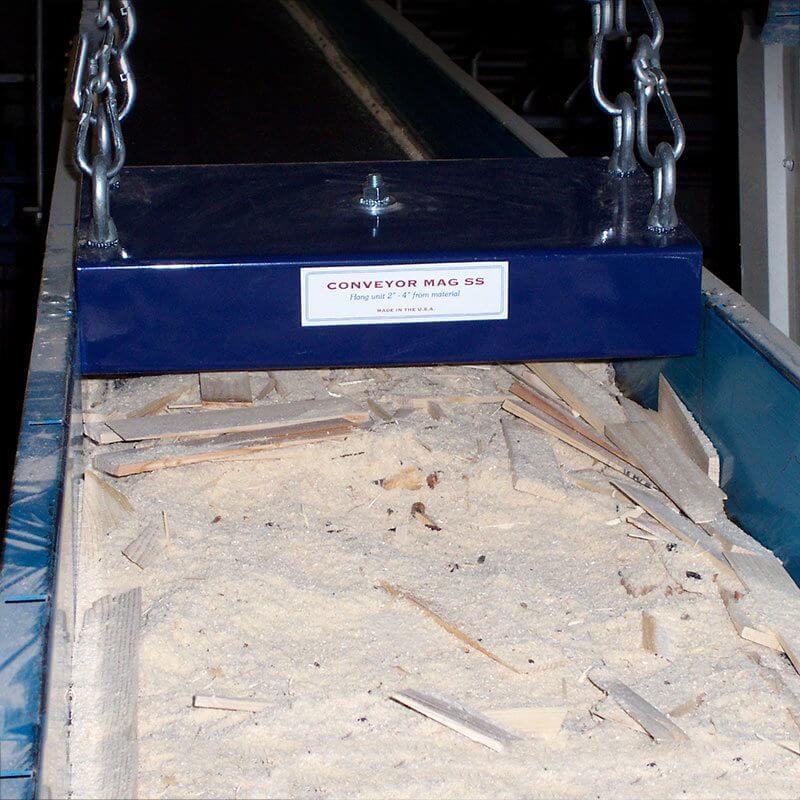

  • Designed to remove damaging ferrous metal debris and provide optimal safety conditions on conveyors, chutes and areas where metal contamination is a problem.
  • Reduces damage to processing equipment.
  • All weather durability and service — no maintenance required.
  • Heavy duty construction consists of state-of the-art permanent magnets, double bonded, and encased in a stainless steel channel and heavy-gauge carbon steel backplate.
  • LIFETIME GUARANTEE ON MAGNETIC STRENGTH/PRODUCT PERFORMANCE GUARANTEE.

Applications

Additional information

Weight N/A
Dimensions N/A
CM3 Size

, , , ,

Made in USA

Shields Magnetics is one of only a handful of U.S. suppliers of industrial magnets.

Questions?

Give us a call at (805) 642-4408 to place an order or if you have questions.
