MKS5000: Tow Sweeper for Rough Terrain

The military grade MKS5000 is the most advanced tow behind magnetic sweeper available. Designed for any environment and surface. 100% USA made. Available in 60″, 72″, 84″ and 96″ width versions.

Shields Guarantees

Call for pricing and with any questions! Direct Customer Service: (800) 799-4408

Description


Download PDF Manual

Originally made for the U.S. Military and currently in use with Air Force bases,  Air National Guard facilities and Army Aviation Support facilities worldwide,  the MKS 5000 TowBehind Magnetic Sweeper was put into commercial production after repeated requests by private companies and contractors wanting to purchase the unit.  There is no other TowBehind Magnetic Sweeper made in the world which is as durable, as strong and as well designed as the MKS 5000.   These pull behind magnets are made 100% in the USA, each and every part.   For detailed information, operation instruction and specs, download the product brochure.

Three tow behind magnetic sweepers can be towed side-by-side with one towing vehicle for up to 24 feet of magnetic sweeping width. See our Market Data to learn more.

GSAGovernment: Also Available Under GSA Schedule 51V , Contract number is GS-06F-0046N

Learn about our government capabilities (including NAIC and PCS numbers)

  • The Tow-Behind Magnetic Sweeper meets USA Government military specifications under MIL-S-29174B.
  • The Choice of the U.S. Army, Air Force and Air National Guard!
  • The ultimate towable magnetic sweeper for uneven, rough terrain, landfills, garbage dumps, construction sites, state and county roads, etc.
  • Tow behind magnetic sweepers are the most effective method of removing ferrous metal from concrete grooves!

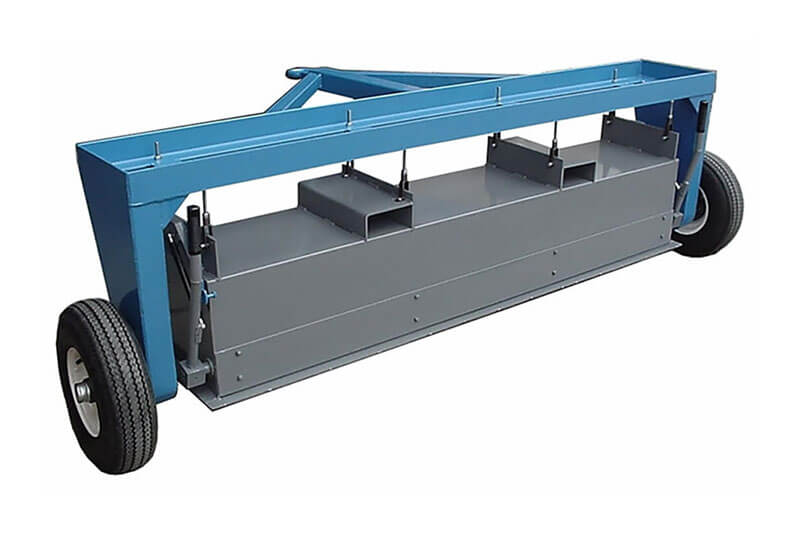

  • Magnet assembly can be trailer-mounted (as shown), bumper mounted, or carried by a forklift.
  • Actual magnet sweeping widths of 60″, 72″, 84″, and 96″
  • Super-power magnets enclosed in a heavy-gauge welded housing are height adjustable to provide sweeping clearance from 2″ to 6″.
  • Simply pull on the gas spring-assisted release lever will release all attracted material and holds the magnet open while the operator moves the sweeper away from the debris pile!
  • Optional Extended Width Trailer. Three pull behind magnet sweepers can be towed side-by-side “Triple Tow Style” with one towing vehicle!
  • 5.70 – 8 / Tire & Wheel Assembly, Load Range, 6 Ply Rated Trailer Tire on 8 x 3.75 (5) Lug White Steel Wheel. Capacity: 910 pounds @ 75 PSI, HIGH SPEED rated trailer tire. OPTION: FOAM FILLED TIRE – Same assembly; with pneumatic tire permanently filled with foam for flat resistance.
  • Pintle hook or ball-hitch attachment
  • Trailer constructed of heavy steel for long-lasting performance and durability.
  • Unconditional Product Performance Guarantee on all Tow Behind Magnetic Sweepers

Applications

Compare Tow Behind Sweeper Magnets

Product 3-in-1 MKS4000 MKS 5000
Max Lifting Height 3″ 5″ 4″
Sweeper Weight 60-110 lbs 450-650 lbs 650-950 lbs
Sweeper Widths 36-96″ 60″, 72″, 84″, 96″ 60″, 72″, 84″, 96″
Cleaning Method Top Mounted Release Release Trays/Catch Pan Gas, Spring Assisted Levers
Terrain Any Smooth Any/Pavement/Dirt/Broken Concrete
Price Range $695-$1250  $4500-$6500 $5900-$7500
Buy Now Buy Now Buy Now

Customers



Request Pricing on an MKS5000 Tow Behind Magnet

  • This field is for validation purposes and should be left unchanged.



Additional information

WIDTH

60-INCH — PRICE INCLUDES FREIGHT

Made in USA

Shields Magnetics is one of only a handful of U.S. suppliers of industrial magnets.

Questions?

Give us a call at (805) 642-4408 to place an order or if you have questions.
